Introduction
. Zinc alloy die cast housing and cylinder.
. Bright nickel plated standard.
. 4 disc tumbler mechanism.
. Reversible double-bitted brass keys, nickel plated.
. Silver plated contacts and brass terminals.

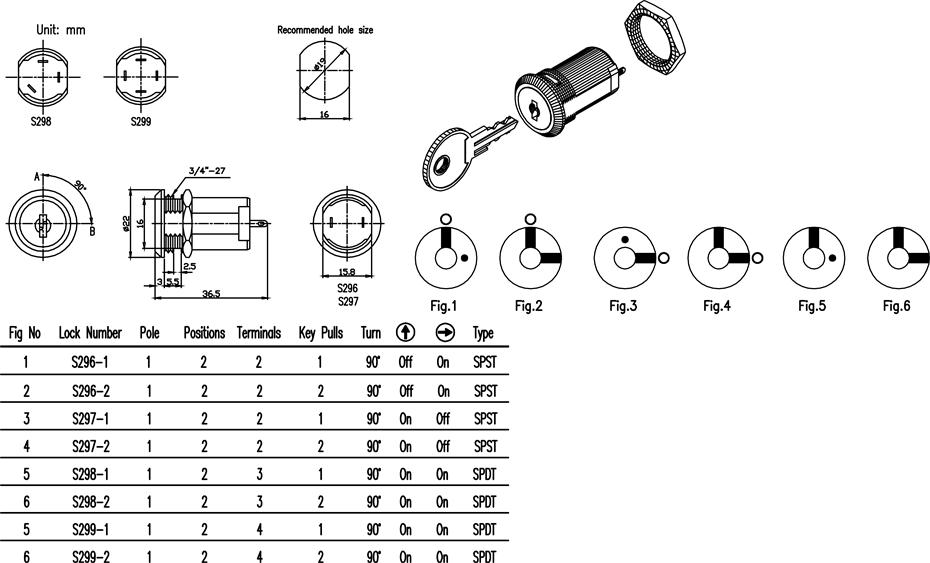

. S296 2 position (off-on) 2 terminals.
. S297 2 position (on-off) 2 terminals.
. S298 2 position (on-on) 3 terminals.
. S299 2 position (on-on) 4 terminals.
. Hex nut or speed clip mounted.
SPECIFICATION
. Contact Rating: 3A 125VAC, 2A 250VAC.
. Contact Resistance: 50Milli-Ohms Max.
. Insulation Resistance: 200 Meg-Ohms Min. (500VDC)
. Dielectric Strength: 1000 VAC -1 Minute.
